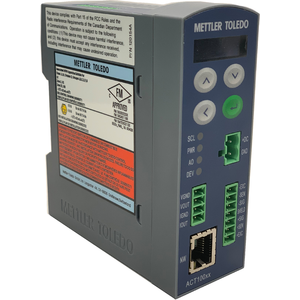

ACT100xx
Weight Transmitter for Automation with 4-20mA analog output and strong service features. Integrated web server via Ethernet allows for remote service with standard browser.
Faster Data Transfer
Fast 200Hz updated rate allows for improved efficiency and optimized weighing processes. This high-speed update enables higher throughput.
Quick Installation
Up and running in minutes through a user-friendly interface. The ACT100 is integrated with a web server that enables more flexibility.
Condition Monitoring
ACT100 includes many functions for status and error conditions. In addition to the onboard display, I/O points can be mapped to error conditions.
Material No.: 30529621002
Product Family:scale-indicator00020027
Specifications - ACT100xx
| Scale | 4 x 350 Ohm Load Cells |
| Communication | Ethernet TCP/IP |
| Voltage | 12-30VDC |
| Dimensions (HxW) | 4.3 in x 1.6 in (110 mm x 40 mm) |
| CalFREE Calibration | Yes |
| Interfaces | 3 Inputs, 2 Outputs 4-20 mA Analog Output |
| Protection Rating | IP20 |
| Hazardous Approval | Division 2 Zone 2/22 |
| Scale Channels | 1 |
| Automation | Automation Controller |
| Maximum PLC Update | 200 Hz |
| Mounting Type | DIN-Rail |
| Power Supply | 12 - 30 VDC |
| Display Size | 1 in |
| Housing material | Plastic |
| Application Area | Bench, Portable, and Floor OEM and System Integrators |
| Weighing Platform | Analog |
| Custom programmable | No |
