Laboratory Weighing Analytical Balances XPR105MCP Balance for Multichannel Pipette Calibration

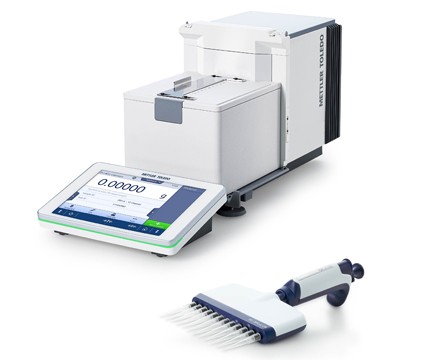

XPR105MCP Balance for Multichannel Pipette Calibration

High-Speed Calibrations Compliant with ISO 8655

The XPR105MCP is the high-speed solution for ISO 8655-compliant calibration of multichannel pipettes. It has a readability of 10 μg and supports multichannel pipettes with up to 12 channels and nominal volumes from 0.5 – 1000 μL.



ISO 8655 Compliant Down to 0.5 μL

With a readability of 10 μg and repeatability of 15 μg, the system fulfills the requirements of ISO 8655 for multichannel pipettes with dispensing volumes as small as 0.5 μL. The outstanding weighing performance ensures accurate calibration results, even at such small volumes.

Fast Calibration and Verification

The results of a single dispense of up to 12 channels are calculated in under one minute. The unique and innovative XPR105MCP tests each pipette channel individually on the same load cell to ensure equal measurement performance. The load cell is protected from any spills to ensure lifelong performance.

Designed for Speed and Performance

The 360 measurements needed for a full calibration (12 channels, 3x10 repetitions) can be completed in as little as 25 minutes. The system can also be connected to a second XPR105MCP for increased throughput.

▲Analytical Balances
Call for Quote
Lab Balance Finder
Balance Finder
Balance Finder

Use the Balance Finder to receive your personalized recommendation in a few clicks.

Start Finder
Technical SpecificationsXPR105MCP Calibration Balance

Capacity/Readability – Fine range

Capacity/Readability – Coarse range

41 g / 0.01 mg

120 g / 0.1 mg

Repeatability system (limit)0.015 mg
Typical repeatability system0.009 mg
Waste container volume17 mL (1,700 dispenses of 10 μL)
Evaporation trap volume (built-in)20 mL
Typical settling time – 0.1 mg4s
Typical settling time – 0.01 mg6.5 s
Pipettes supported4–12 channels
Pipette volume range supported0.5–1,000 μL
Norms supportedISO 8655, JJG 646
Typical process time – 12 channels, 200 μL, 3×10 repetitions25 min*
Typical process time – 8 channels, 10 μL, 2×4 repetitions7 min*
Connectivity4× USB, 1× RJ45
Dimensions (W×D×H)195 × 486 × 205 mm

Weight

12.5 kg

* depending on the room’s environmental conditions and technician experience



Ordering InformationMaterial No.

XPR105MCP Calibration Balance:
XPR105DUHR and MCP module

30786916 and 30785286

Software: Calibry V6.2 or higher

  • Calibry Single Workstation
  • Calibry Network



11138419

11138420

Calibry Validation Handbook11780959
Pipette calibration table11138042
CarePac test weight set with certificate
(5 g / 100 g)		30550615
Water container for pipetting (25 pcs)17007886
Suction pump with tubes, power supply30676828, 30388323
Terminal extension cable (4.5 m)30300920

Step-by-Step ISO Calibration Guidance

The supplementary Calibry PC software guides you through a full pipette calibration process, giving you the reassurance that all steps and calculations are completed correctly. All users follow the same instructions, ensuring consistent testing procedures.



Compliant Data Management and Reporting

The Calibry PC software stores results in a secure database, informs you when pipette tests are due, and produces customized reports if required. Calibry helps you fulfil ALCOA+ data integrity requirements and assists with 21 CFR part 11 compliance.



Compact and Functional Design

With its compact footprint, the XPR105MCP can be operated comfortably in tight bench spaces. Its simple construction allows convenient access for calibrations and cleaning. The pipette tanks can be easily emptied with an optional pump.



Instantaneous Pipette Identification

Identify your pipette in an instant with the optional RFID reader connected to Calibry. Each pipette is easily tracked, ensuring that the correct procedures are used for testing and calibration.



Ergonomic Workplace

The special pipette calibration table consists of two independent tables, which prevent user vibrations from reaching the balance. They can be adjusted to obtain the best ergonomic position for working throughout the day.



Benefit From Our Pipetting Know-How

METTLER TOLEDO’s Good Pipetting Practice™ (GPP™) is a systematic approach to maximizing pipetting accuracy. Improve your skills to produce consistent results, and understand how proper technique can influence data quality.



Rainin Pipette Calibration and Service

Looking for an alternative to in-house pipette calibration? Rainin's ISO 17025 accredited labs offer professional pipette service and calibration worldwide.



Documentation

Datasheets

Datasheet: Multichannel Pipette Calibration
Datasheet: Multichannel Pipette Calibration (pdf - 326 KB)
Pipette Calibration Software Datasheet
Pipette Calibration Software Datasheet
Calibry is the ideal software for managing ISO 8655 calibrations and performance verifications of single and multichannel pipettes in laboratory weigh...

Library Items

How to Comply with the ISO 8655 Revisions for Pipettes
Learn How to Comply with the ISO 8655 Revisions for Pipettes
The 2022 revisions to ISO 8655 included significant changes for pipettes. This guide explains the updates and what you need to do to ensure compliance...
