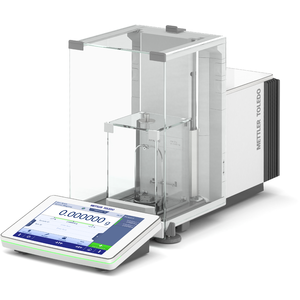

Comparator XPR36C

Name: Comparator XPR36C
Brand: Mettler Toledo

Comparator & Higher Performance Balance.It comes with 32 g capacity and 1 µg readability. The main benefits are: Highly accurate Mass Determination, Minimized Weighing Errors, Secure Data Transfer and highly ergonomic Operation.

Accurate Mass Determination

METTLER TOLEDO manual mass comparators guarantee top measurement performance and full traceability of weighing results.

Minimized Weighing Errors

Error-free operation through user guidance on the color touchscreen for a smooth and hands-free process.

Secure Data Transfer

The integrated USB and Ethernet interfaces make it easy and reliable to transfer data to peripheral devices or a network.

Material No.: 30594503

Call for Quote

Overview
Documentation
Accessories
More Information
More Information
Consumables
Software

Specifications - Comparator XPR36C

Maximum Capacity	32 g
Readability	1 µg
Settling Time	3.5 s
Minimum Weight (USP, 0.1%, typical)	1.2 mg
Adjustment	Internal (automatic/FACT)
Interfaces	Bluetooth (optional) Ethernet (LAN) RS232 (integrated/optional) USB-A (to device) USB-B (to device)
User management	Password protection Unlimited Amount of Users User Rights
Legal for Trade	No
Repeatability ABA at Nominal Load	1.5 µg (20 g)
Repeatability ABA at Low Load	0.7 µg (1 g)
Repeatability nominal load	2.5 µg
Repeatability (Low Load) (5%)	0.6 µg
OIML Class	E1 E2 F1 F2 M1 M2 M3
Gravimetric eccentricity elimination	Included
Software	Optional MC Link 2 Mass Calibration Software
Dimensions (LxHxD)	195 mm x 292 mm x 485 mm
Weight	10.1 kg
Weight Handler	None
Valuable Samples	Yes
Compliance Options	Data Integrity Log history (21 CFR Part 11 Compliant) Log history (Basic Metadata) Password protection
Approved Balance	No
Balance Line	XPR
Repeatability, typical	0.6 µg
Balance Type	Microbalance
Weighing Pan Diameter	35 mm
Features	Automatic doors Automatic static detection Leveling guidance Password protection Supports 21 CFR Part 11 (LabX compatible) User management
Linearity ±	0.012 mg
Documentation Options	Automatic Documentation (21 CFR Part 11 Compliant) Basic Electronic Documentation Printing
Automatic Static Detection	Yes
Linearity	12 µg
Microbalance Type	Micro-Analytical Balance
Family	Excellence
Level	Excellence $$$
21 CFR Part 11 Compliant Weighing	Yes
Draftshield	Automated
Automation Options	Automated Workflows

One-Click Certificate

The optional MC Link calibration software automatically stores all your weight calibration and other metrological relevant data in a secure database. Regulatory compliant calibration certificates are issued with one click.

Latest Technology

The large touchscreen terminal with built-in user guidance minimizes errors. Built-in intelligence, e.g. status light, which intuitively indicates the instrument status.

Highly Ergonomic Operation

The user interface guarantees efficient, intuitive operation. The touchscreen allows a fast and error-free operation even with gloves.
